Boost · Example

Boost — duty and load sweeps

Separate sweeps for switch duty and output load.

Open and simulate Check the LTspice comparison status

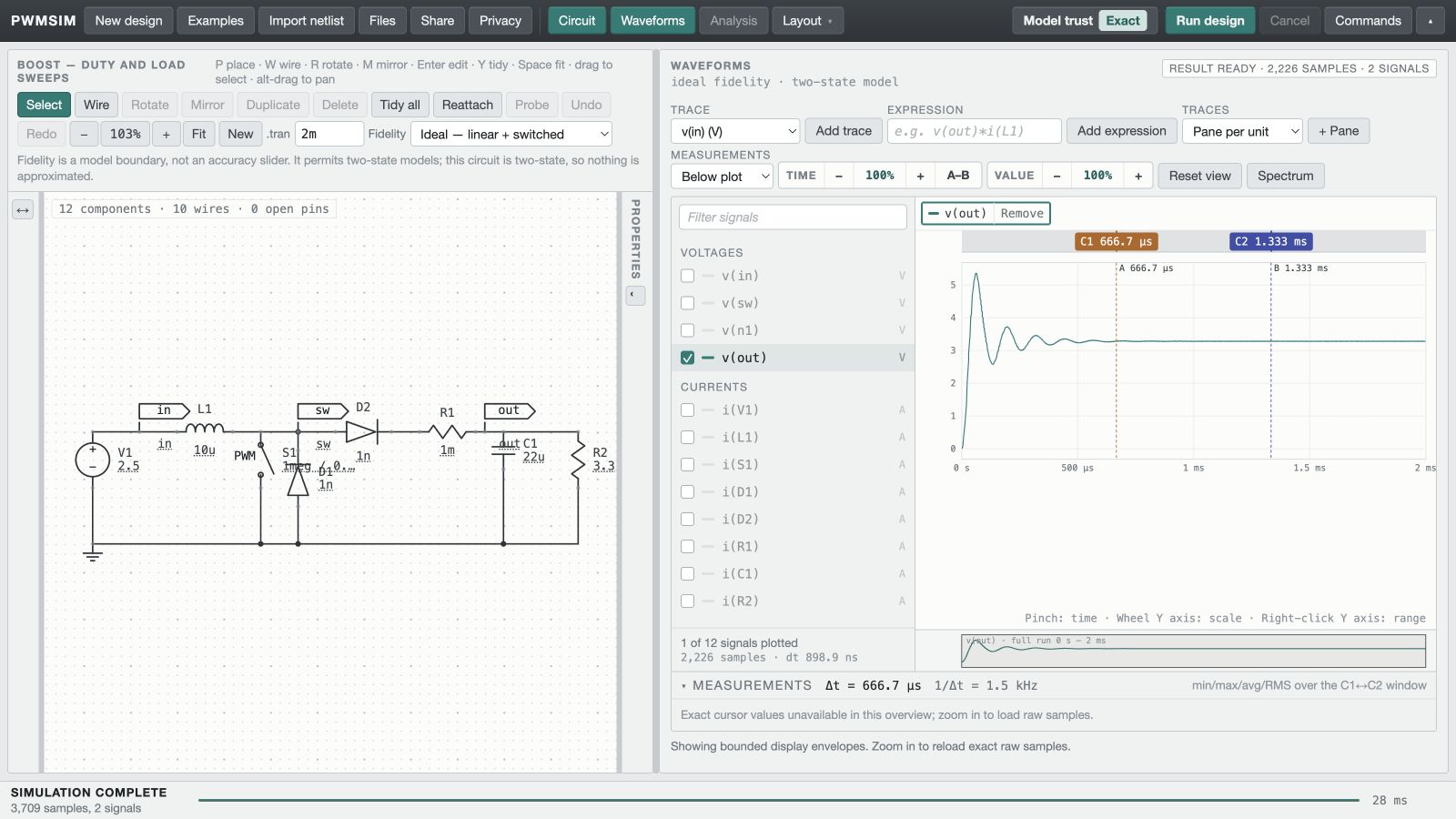

Boost — duty and load sweeps circuit and simulated waveform in PWMSim — This is the editable circuit and completed result in PWMSim. You can review the values, model type, and recommended waveform before opening it.

Try this first

Sweep duty first, then run a separate R2 load sweep and compare trace families.

The app opens this template, adds the recommended probe, and runs it once. Change the suggested value and run it again to compare the results.

Limits

This example works in the browser, but it is not a promoted LTspice comparison, hardware design, or certification. Check the app for model limits. It does not cover packaging, layout, thermal behavior, or operating conditions that are not listed.
