Diode reverse-recovery pulse

A detailed diode model switching from forward current to reverse voltage.

Open and simulate Check the LTspice comparison status

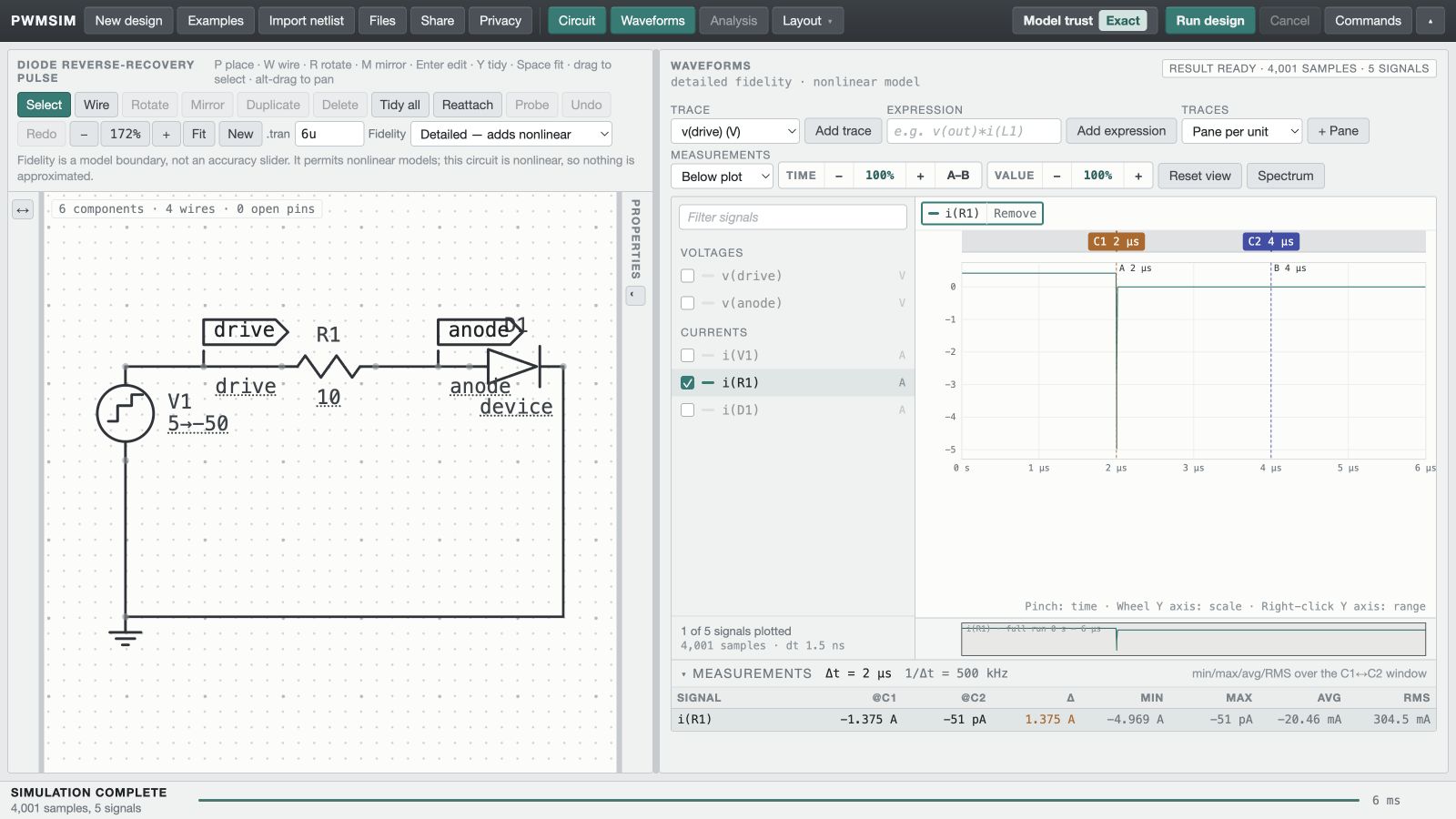

Diode reverse-recovery pulse circuit and simulated waveform in PWMSim — This is the editable circuit and completed result in PWMSim. You can review the values, model type, and recommended waveform before opening it.

Try this first

Change transit time from 100 ns to 0 and compare the reverse-current pulse.

The app opens this template, adds the recommended probe, and runs it once. Change the suggested value and run it again to compare the results.

Limits

This example works in the browser, but it is not a promoted LTspice comparison, hardware design, or certification. Check the app for model limits. It does not cover packaging, layout, thermal behavior, or operating conditions that are not listed.
